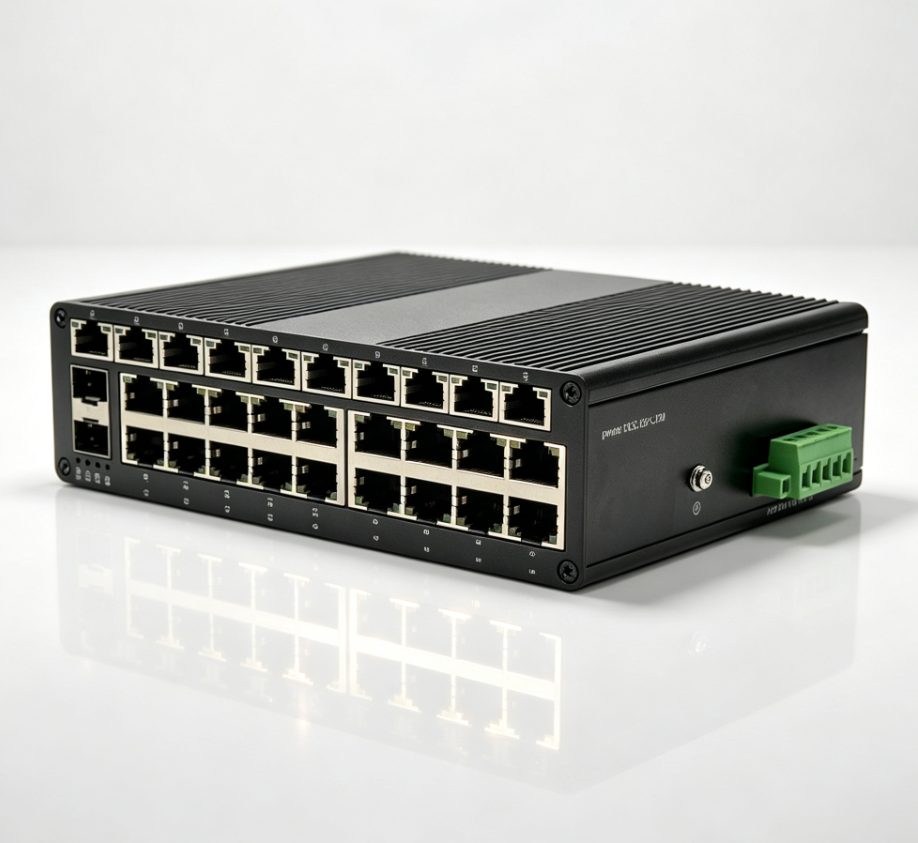

24-Port 10/100 Industrial Switch+2G SFP
EL1242FG-SFP
ModelEL1242FG-SFP
Name24-Port 10/100 Industrial Switch+2G SFP
Key Words
24 Port Ethernet Switch24 Port PoE Switch26 Port Network SwitchDin rail Industrial Switchoutdoor SwitchUnmanaged Switch240W PoE SwitchElink SwitchEthernet HubNetwork Hub
Features
- 24*10/100 Ethernet, 2 Port gigabit SFP
- Plug and play, no configuration required
- Store-and-forward switching architecture
- Supports 240W PoE output
- Fanless design for silent operation
Specifications
| Ethernet Interface | |
| Ports | 24×10/100Base-T RJ45+2G SFP |
| Ports | 24×10/100Base-T RJ45+2G SFP |
| Auto Negotiation | Auto MDI/MDIX |
| Auto Negotiation | Auto MDI/MDIX |
| Flow Control | IEEE 802.3x |
| Flow Control | IEEE 802.3x |
| Switching Performance | |
| Switching Capacity | 14.8Gbps |
| Switching Capacity | 14.8Gbps |
| Packet Buffer | 4Mbit |
| Packet Buffer | 4Mbit |
| MAC Address | 16K |
| Jumbo Frame | 9K bytes |
| Power Parameters | |
| Redundant Power Supply | DC12-52V DC48-58V(PoE) |
| Power Consumption | ≤10W |

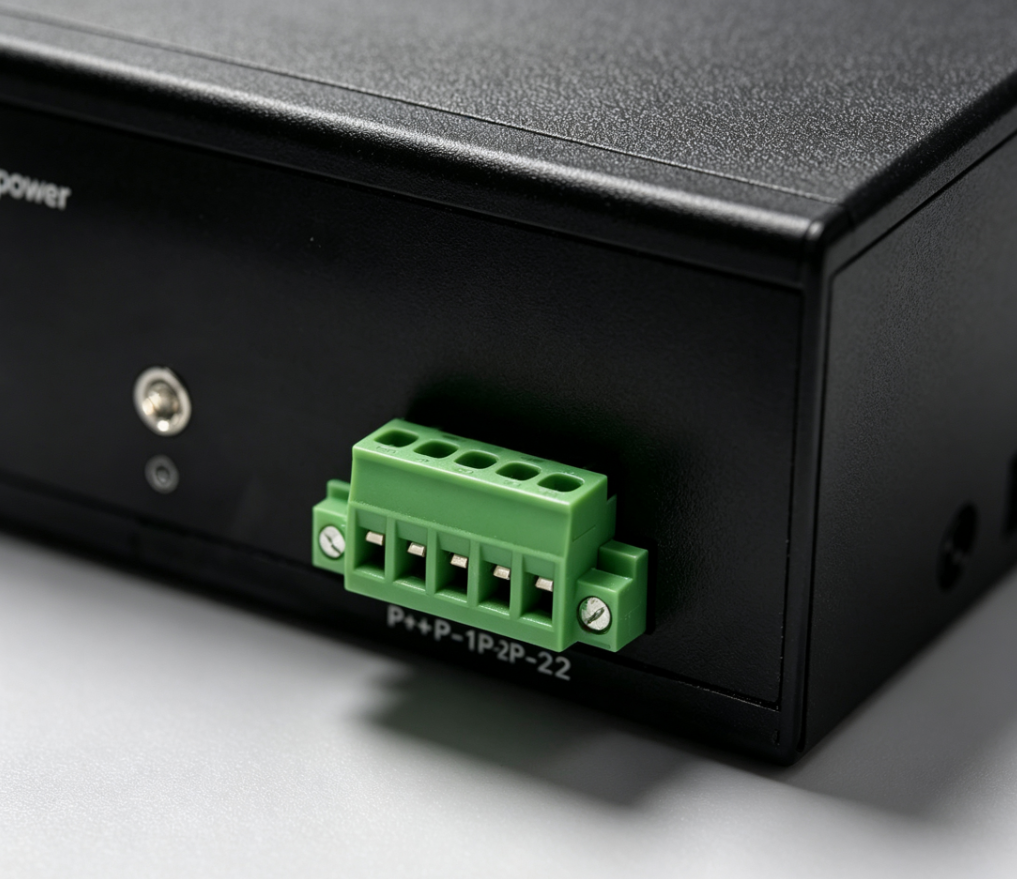

| Connector | DC jack |
| Physical Characteristics | |
| Operating Temperature | -40℃~75℃ |
| Storage Temperature | -40℃~85℃ |
| Dimensions | 150×126×53mm |
| Weight | 1.1kg |
| Installation | DIN rail |
| Standards and Certifications | |
| Standards | IEEE802.3 10BASE-T; 100BASE-T IEEE802.3i 10Base-T;IEEE802.3u;IEEE802.3x |
| Certifications | CE, FCC, RoHS |
